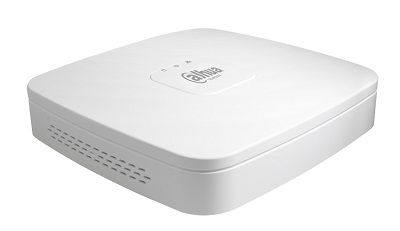

Model |
DH-HCVR5104C-S2 |
DH-HCVR5108C-S2 |
||
|
System |
||||
|
Main Processor |
Embedded processor |
|||
|
Operating System |
Embedded LINUX |
|||
|
Video |
||||
|
Input |
4 channel, BNC |
8 channel, BNC |
||
|
Standard |
Analog |
NTSC(525Line,60f/s),PAL(625Line,50f/s) |
||
|
HDCVI |
1080P/720P HDCVI Camera |
|||
|
IP |
1080P/720P/D1/CIF IP Camera |
|||
|
Audio |
||||
|
Input |
1 channel, RCA |
|||
|
Output |
1 channel, RCA |
|||
|
Two-way Talk |
Reuse audio input/output channel 1 |
|||
|
Display |
||||
|
Interface |
1 HDMI, 1 VGA |
|||
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
|||
|
Display Split |
1/4 |
1/4/8/9 |
||
|
Privacy Masking |
4 rectangular zones (each camera) |
|||
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|||
|
Recording |
||||
|
Video/Audio Compression |
H.264/G.711 |
|||
|
Record Rate |
Main Stream: |
1080P(1~15fps)/720P/960H/D1(1~25/30fps) |
||
|
Extra Stream |
CIF/QCIF(1~25/30fps), D1(1~6/7fps) |
|||
|
Bit Rate |
96~4096Kb/s |
|||
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|||
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|||
|
Video Detection |
||||
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
|||
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|||
|
Playback & Backup |
||||
|
Sync Playback |
1/4 |
1/4/9 |
||
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|||
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|||
|
Backup Mode |
USB Device/Internal SATA burner/Network |
|||
|
Network |
||||
|
Ethernet |
RJ-45 port (10/100M) |
|||
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
|||
|
Max. User Access |
128 users |
|||
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|||
|
Storage |
||||
|
Internal HDD |
1 SATA port, up to 4TB |
|||
|
Auxiliary Interface |
||||
|
USB Interface |
2 ports(2 Rear), USB2.0 |
|||
|
General |
||||
|
Power Supply |
DC12V/2A |
|||
|
Power Consumption |
10W(without HDD) |
|||
|
Working Environment |
-10°C ~+55°C / 10%~90%RH / 86~106kpa |
|||
|
Dimension(W×D×H) |
Smart 1U, 205mm×205mm×40mm |
|||
|
Weight |
0.5KG(without HDD) |
|||
